纵向过载控制 - 经典控制（纯 Python 实现）
本章与上一章实现的功能完全相同，但将 C++ 部分代码完全迁移至 Python，并进行了性能比较。
WingedCone_py.py
import numpy as np
from math import pi
from aerodrome.registration import register
TABLE4 = [
[00000, -0.0065, 288.150, 1.01325000000000E+5],
[11000, 0.0000, 216.650, 2.26320639734629E+4],
[20000, 0.0010, 216.650, 5.47488866967777E+3],
[32000, 0.0028, 228.650, 8.68018684755228E+2],
[47000, 0.0000, 270.650, 1.10906305554966E+2],
[51000, -0.0028, 270.650, 6.69388731186873E+1],
[71000, -0.0020, 214.650, 3.95642042804073E+0],
[84852, 0.0000, 186.946, 3.73383589976215E-1]
] # 空气参数表，参考 y_atmosphere.h
def Temperature(z):
H = z * 6356766 / (z + 6356766)
for b in range(7):
if H < TABLE4[b+1][0]:
break
return TABLE4[b][2] + TABLE4[b][1] * (H - TABLE4[b][0])
def Pressure(z):
H = z * 6356766 / (z + 6356766)
for b in range(7):
if H < TABLE4[b+1][0]:
break
C = -0.0341631947363104
Hb = TABLE4[b][0]
Lb = TABLE4[b][1]
Tb = TABLE4[b][2]
Pb = TABLE4[b][3]
if abs(Lb) > 1E-12:
return Pb * pow(1 + Lb/Tb * (H-Hb), C/Lb)
else:
return Pb * np.exp(C * (H-Hb)/Tb)
def Density(T, P):
return P * 0.00348367635597379 / T
def SpeedofSound(T):
return np.sqrt(401.87430086589 * T)
def Gravity(z):
return 9.80665 * pow(1 + z/6356766, -2)
class WingedCone_py:
def __init__(self, input_dict):
# Object3D
self.name = input_dict["name"]
self.integrator = input_dict["integrator"]
self.dt = input_dict["dt"]
self.init_m = self.m = input_dict["m"]
self.d_m = 0
self.J = np.array(input_dict["J"]).reshape(3, 3)
self.J_inv = np.linalg.inv(self.J)
self.init_pos = self.pos = np.array(input_dict["pos"])
self.init_vel = self.vel = np.array(input_dict["vel"])
self.init_ang_vel = self.ang_vel = np.array(input_dict["ang_vel"])
self.init_V = self.V = np.sqrt(self.vel[0] * self.vel[0] + self.vel[1] * self.vel[1] + self.vel[2] * self.vel[2])
self.init_theta = self.theta = input_dict["theta"]
self.init_phi = self.phi = input_dict["phi"]
self.init_gamma = self.gamma = input_dict["gamma"]
self.init_theta_v = self.theta_v = input_dict["theta_v"]
self.init_phi_v = self.phi_v = input_dict["phi_v"]
self.beta = np.asin(np.cos(self.theta_v) * (np.cos(self.gamma) * np.sin(self.phi - self.phi_v) + np.sin(self.theta) * np.sin(self.gamma) * np.cos(self.phi - self.phi_v)) - np.sin(self.theta_v) * np.cos(self.theta) * np.sin(self.gamma))
self.alpha = np.asin((np.cos(self.theta_v) * (np.sin(self.theta) * np.cos(self.gamma) * np.cos(self.phi - self.phi_v) - np.sin(self.gamma) * np.sin(self.phi - self.phi_v)) - np.sin(self.theta_v) * np.cos(self.theta) * np.cos(self.gamma)) / np.cos(self.beta))
self.gamma_v = np.asin((np.cos(self.alpha) * np.sin(self.beta) * np.sin(self.theta) - np.sin(self.alpha) * np.sin(self.beta) * np.cos(self.gamma) * np.cos(self.theta) + np.cos(self.beta) * np.sin(self.gamma) * np.cos(self.theta)) / np.cos(self.theta_v))
# Aircraft3D
self.h = self.pos[1]
self.S = input_dict["S"]
self.c = input_dict["c"]
self.Tem = Temperature(self.h)
self.Pres = Pressure(self.h)
self.Rho = Density(self.Tem, self.Pres)
self.a = SpeedofSound(self.Tem)
self.g = Gravity(self.h)
self.q = 0.5 * self.Rho * self.V * self.V
self.L = 0.0
self.D = 0.0
self.N = 0.0
self.T = 0.0
self.M = [0.0, 0.0, 0.0]
# WingedCone2D
self.delta_e = 0.0
# WingedCone2D_Classic
self.Kiz = input_dict["Kiz"]
self.Kwz = input_dict["Kwz"]
self.Kaz = input_dict["Kaz"]
self.Kpz = input_dict["Kpz"]
self.Kp_V = input_dict["Kp_V"]
self.Ki_V = input_dict["Ki_V"]
self.Kd_V = input_dict["Kd_V"]
self.eNy = 0.0
self.i_eNy = 0.0
self.p_eNy = 0.0
self.i_eSAC = 0.0
self.i_V = 0.0
self.d_eV = 0.0
self.eV_prev = 0.0
self._D()
self._L()
self._T()
self._M()
self.Ny = (self.T * (np.sin(self.alpha) * np.cos(self.gamma_v) - np.cos(self.alpha) * np.sin(self.beta) * np.sin(self.gamma_v))
+ self.L * np.cos(self.gamma_v) - self.N * np.sin(self.gamma_v) - self.m * self.g * np.cos(self.theta_v)) / (self.m * self.g)
self.wz = self.ang_vel[2]
def reset(self):
self.pos = self.init_pos.copy()
self.vel = self.init_vel.copy()
self.ang_vel = self.init_ang_vel.copy()
self.m = self.init_m
self.V = self.init_V
self.theta = self.init_theta
self.phi = self.init_phi
self.gamma = self.init_gamma
self.theta_v = self.init_theta_v
self.phi_v = self.init_phi_v
self.beta = np.asin(np.cos(self.theta_v) * (np.cos(self.gamma) * np.sin(self.phi - self.phi_v) + np.sin(self.theta) * np.sin(self.gamma) * np.cos(self.phi - self.phi_v)) - np.sin(self.theta_v) * np.cos(self.theta) * np.sin(self.gamma))
self.alpha = np.asin((np.cos(self.theta_v) * (np.sin(self.theta) * np.cos(self.gamma) * np.cos(self.phi - self.phi_v) - np.sin(self.gamma) * np.sin(self.phi - self.phi_v)) - np.sin(self.theta_v) * np.cos(self.theta) * np.cos(self.gamma)) / np.cos(self.beta))
self.gamma_v = np.asin((np.cos(self.alpha) * np.sin(self.beta) * np.sin(self.theta) - np.sin(self.alpha) * np.sin(self.beta) * np.cos(self.gamma) * np.cos(self.theta) + np.cos(self.beta) * np.sin(self.gamma) * np.cos(self.theta)) / np.cos(self.theta_v))
self.h = self.pos[1]
self.Tem = Temperature(self.h)
self.Pres = Pressure(self.h)
self.Rho = Density(self.Tem, self.Pres)
self.a = SpeedofSound(self.Tem)
self.g = Gravity(self.h)
self.q = 0.5 * self.Rho * self.V * self.V
self.L = 0.0
self.D = 0.0
self.N = 0.0
self.T = 0.0
self.M = [0.0, 0.0, 0.0]
self.delta_e = 0.0
self.eNy = 0.0
self.i_eNy = 0.0
self.p_eNy = 0.0
self.i_eSAC = 0.0
self.i_V = 0.0
self.d_eV = 0.0
self.eV_prev = 0.0
self._D()
self._L()
self._T()
self._M()
self.Ny = (self.T * (np.sin(self.alpha) * np.cos(self.gamma_v) - np.cos(self.alpha) * np.sin(self.beta) * np.sin(self.gamma_v))
+ self.L * np.cos(self.gamma_v) - self.N * np.sin(self.gamma_v) - self.m * self.g * np.cos(self.theta_v)) / (self.m * self.g)
self.wz = self.ang_vel[2]
def _D(self):
CD = 0.645 * self.alpha * self.alpha + 0.0043378 * self.alpha + 0.003772
self.D = self.q * self.S * CD
def _L(self):
CL = 0.6203 * self.alpha + 2.4 * np.sin(0.08 * self.alpha)
self.L = self.q * self.S * CL
def _T(self):
self.T = 4.959e3
def _M(self):
CM1 = -0.035 * self.alpha * self.alpha + 0.036617 * self.alpha + 5.3261e-6
CM2 = self.ang_vel[2] * self.c * (-6.796 * self.alpha * self.alpha + 0.3015 * self.alpha - 0.2289) / (2 * self.V)
CM3 = 0.0292 * (self.delta_e - self.alpha)
self.M[2] = self.q * self.S * self.c * (CM1 + CM2 + CM3)
def to_dict(self):
return {
# Object3D
"name": self.name,
"integrator": self.integrator,
"dt": self.dt,
"pos": self.pos,
"vel": self.vel,
"ang_vel": self.ang_vel,
"J": self.J,
"J_inv": self.J_inv,
"V": np.sqrt(self.vel[0] * self.vel[0] + self.vel[1] * self.vel[1] + self.vel[2] * self.vel[2]),
"theta": self.theta,
"phi": self.phi,
"gamma": self.gamma,
"theta_v": self.theta_v,
"phi_v": self.phi_v,
"gamma_v": self.gamma_v,
"alpha": self.alpha,
"beta": self.beta,
"h": self.pos[1],
"S": self.S,
"c": self.c,
"m": self.m,
"Tem": self.Tem,
"Pres": self.Pres,
"Rho": self.Rho,
"a": self.a,
"g": self.g,
"q": self.q,
"L": self.L,
"D": self.D,
"N": self.N,
"T": self.T,
"M": self.M,
"delta_e": self.delta_e,
"Kiz": self.Kiz,
"Kwz": self.Kwz,
"Kaz": self.Kaz,
"Kpz": self.Kpz,
"Kp_V": self.Kp_V,
"Ki_V": self.Ki_V,
"Kd_V": self.Kd_V,
"eNy": self.eNy,
"i_eNy": self.i_eNy,
"p_eNy": self.p_eNy,
"i_eSAC": self.i_eSAC,
"i_V": self.i_V,
"d_eV": self.d_eV,
"eV_prev": self.eV_prev,
"Ny": self.Ny,
"wz": self.wz
}
def Ny_controller(self, Nyc, Ny, wz, dt):
# 过载跟踪误差
self.eNy = Nyc - Ny
# PI校正环节
self.i_eNy += self.eNy * dt
self.p_eNy = self.eNy
pi_eNy = self.Kiz * self.i_eNy + self.Kpz * self.p_eNy
# 增稳回路
eSAC = pi_eNy - self.Kaz * wz
self.i_eSAC += eSAC * dt
# 阻尼回路
eDamp = self.i_eSAC - self.Kwz * wz
return eDamp
def step(self, action):
Nyc = action["Nyc"]
Vc = action["Vc"]
self.delta_e = self.Ny_controller(Nyc, self.Ny, self.wz, self.dt)
self.delta_e = np.clip(self.delta_e, -25 / 57.3, 25 / 57.3)
# 计算气动力
self._D()
self._L()
self._T()
self._M()
c_force = np.array([
self.T * np.cos(self.alpha) * np.cos(self.beta) - self.D - self.m * self.g * np.sin(self.theta),
self.T * (np.sin(self.alpha) * np.cos(self.gamma_v) + np.cos(self.alpha) * np.sin(self.beta) * np.sin(self.gamma_v)) + self.L * np.cos(self.gamma_v) - self.N * np.sin(self.gamma_v) - self.m * self.g * np.cos(self.theta),
self.T * (np.sin(self.alpha) * np.sin(self.gamma_v) - np.cos(self.alpha) * np.sin(self.beta) * np.cos(self.gamma_v)) + self.L * np.sin(self.gamma_v) + self.N * np.cos(self.gamma_v),
self.M[0], self.M[1], self.M[2]
]) # Forces and moments
self.kinematics_step(c_force)
self.h = self.pos[1]
self.Tem = Temperature(self.h)
self.Pres = Pressure(self.h)
self.Rho = Density(self.Tem, self.Pres)
self.a = SpeedofSound(self.Tem)
self.g = Gravity(self.h)
self.q = 0.5 * self.Rho * self.V * self.V
self.Ny = (self.T * (np.sin(self.alpha) * np.cos(self.gamma_v) - np.cos(self.alpha) * np.sin(self.beta) * np.sin(self.gamma_v))
+ self.L * np.cos(self.gamma_v) - self.N * np.sin(self.gamma_v) - self.m * self.g * np.cos(self.theta_v)) / (self.m * self.g)
self.wz = self.ang_vel[2]
return self.to_dict()
def kinematics_step(self, c_force):
c_state = np.array([self.V, self.theta_v, self.phi_v,
self.theta, self.phi, self.gamma,
self.ang_vel[0], self.ang_vel[1], self.ang_vel[2], self.m])
if self.integrator == "euler":
# Update state using Euler method
d_state = self.d(c_state, c_force)
new_state = c_state + d_state * self.dt
elif self.integrator == "midpoint":
# Midpoint method
k1 = self.d(c_state, c_force)
k2 = self.d(c_state + k1 * (self.dt / 2), c_force)
new_state = c_state + k2 * self.dt
elif self.integrator == "rk4":
# RK4 method
k1 = self.d(c_state, c_force)
k2 = self.d(c_state + k1 * (self.dt / 2), c_force)
k3 = self.d(c_state + k2 * (self.dt / 2), c_force)
k4 = self.d(c_state + k3 * self.dt, c_force)
new_state = c_state + (k1 + 2 * k2 + 2 * k3 + k4) * (self.dt / 6)
self.V, self.theta_v, self.phi_v, self.theta, self.phi, self.gamma, self.ang_vel[0], self.ang_vel[1], self.ang_vel[2], self.m = new_state
self.vel[0] = self.V * np.cos(self.theta_v) * np.cos(self.phi_v)
self.vel[1] = self.V * np.sin(self.theta_v)
self.vel[2] = -self.V * np.cos(self.theta_v) * np.sin(self.phi_v)
self.pos += self.vel * self.dt
self.beta = np.asin(np.cos(self.theta_v) * (np.cos(self.gamma) * np.sin(self.phi - self.phi_v) + np.sin(self.theta) * np.sin(self.gamma) * np.cos(self.phi - self.phi_v)) - np.sin(self.theta_v) * np.cos(self.theta) * np.sin(self.gamma))
self.alpha = np.asin((np.cos(self.theta_v) * (np.sin(self.theta) * np.cos(self.gamma) * np.cos(self.phi - self.phi_v) - np.sin(self.gamma) * np.sin(self.phi - self.phi_v)) - np.sin(self.theta_v) * np.cos(self.theta) * np.cos(self.gamma)) / np.cos(self.beta))
self.gamma_v = np.asin((np.cos(self.alpha) * np.sin(self.beta) * np.sin(self.theta) - np.sin(self.alpha) * np.sin(self.beta) * np.cos(self.gamma) * np.cos(self.theta) + np.cos(self.beta) * np.sin(self.gamma) * np.cos(self.theta)) / np.cos(self.theta_v))
def d(self, c_state, c_force):
c_V, c_theta_v, c_phi_v, c_theta, c_phi, c_gamma, c_p, c_q, c_r, c_m = c_state
c_fx, c_fy, c_fz, c_mx, c_my, c_mz = c_force
d_V = c_fx / c_m
d_theta_v = c_fy / (c_m * c_V)
d_phi_v = -c_fz / (c_m * c_V * np.cos(c_theta_v))
c_ang_vel = np.array([c_p, c_q, c_r])
c_moment = np.array([c_mx, c_my, c_mz])
d_ang_vel = self.J_inv @ (c_moment - np.cross(c_ang_vel, self.J @ c_ang_vel))
d_theta = c_q * np.sin(c_gamma) + c_r * np.cos(c_gamma)
d_phi = (c_q * np.cos(c_gamma) - c_r * np.sin(c_gamma)) / np.cos(c_theta)
d_gamma = c_p - np.tan(c_theta) * (c_q * np.cos(c_gamma) - c_r * np.sin(c_gamma))
d_state = np.array([d_V, d_theta_v, d_phi_v,
d_theta, d_phi, d_gamma,
d_ang_vel[0], d_ang_vel[1], d_ang_vel[2], self.d_m])
return d_state
register("wingedcone_py-v0", "aerodrome.envs.WingedCone_py:WingedCone_py")

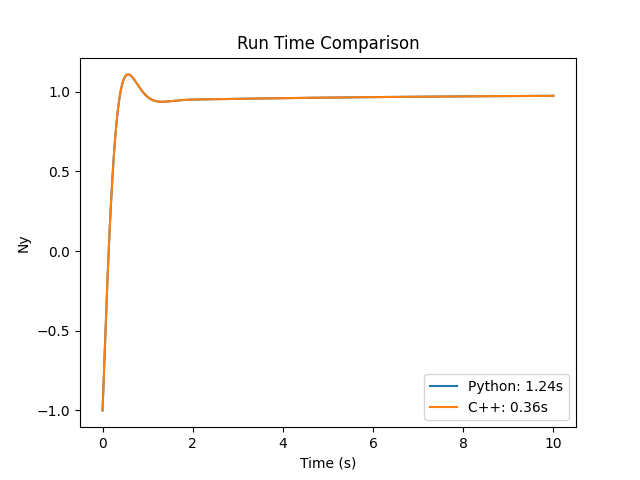

下面是纯 Python 版本和混合版本（C++ 仿真 & Python 交互）的运行效率比较； 看起来只有一条曲线是因为两条曲线重合了，证明两种实现在数值上是等效的。
